We design, develop and customize various segment code LCD modules. Applicable to instruments, industrial control equipment, etc.
|
item
|
value
|
|
Module NO
|
ZHD8104V07
|
|
COB Type
|
Segmeng COB
|
|
Module Size
|
45.5(L)x45.8(W)x6.6(H) MM
|
|
Operate Voltage
|
3.0V
|
|
Viewing Direction
|
6:00
|
|
Interface
|
SPI
|
|
Controller IC
|
HT1620 or Equal
|
|
Operating Temperature
|
-25~ +75 ℃
|
|
Storage Temperature
|
-30~ +80 ℃
|
|
Backlight Current(Typ)
|
20 mA
|

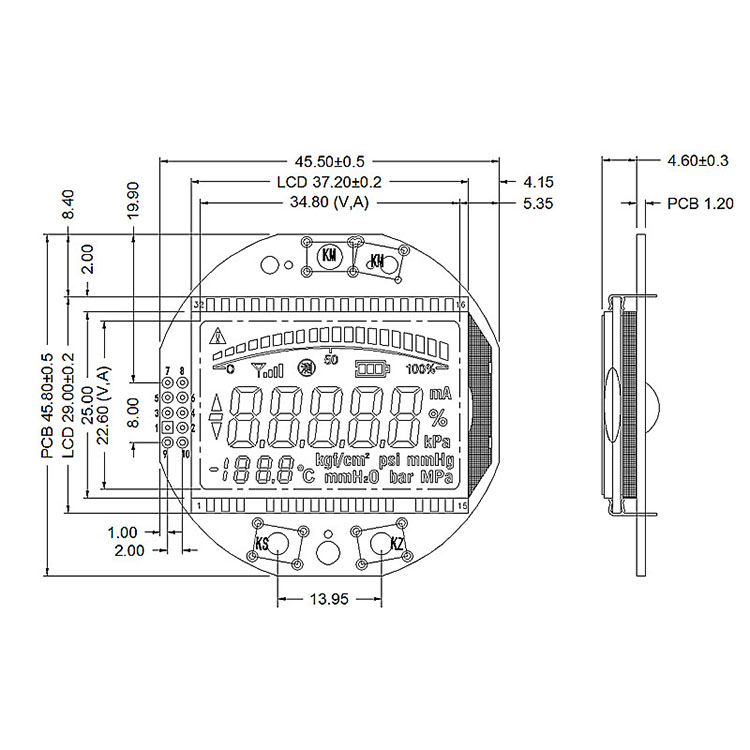

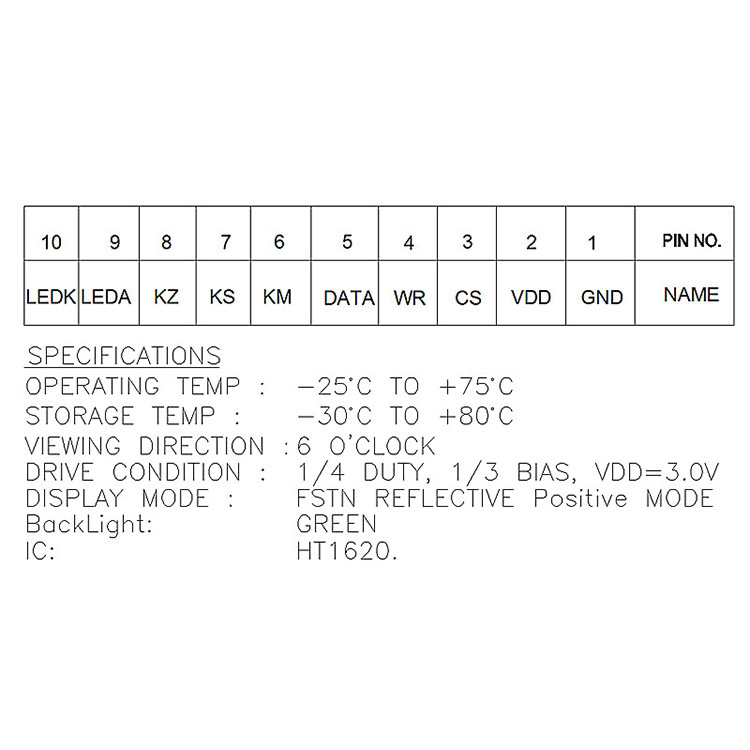

Outline Drawing& Interface Instruction
|
