category：Custom Segmen LCD Module

Clicks：360

release time：2022-09-01

Notice:

 We design, develop and customize various segment code LCD modules. Applicable to instruments, industrial control equipment, etc.

Products Description

item	value
Module NO	HED9001V01
COB Type	Segmeng COB
Module Size	67.0(L)x42.0(W)x6.6(H) MM
Operate Voltage	3.3V
Viewing Direction	6:00
Interface	SPI
Controller IC	HT1620 or Equal
Operating Temperature	-20~ +70 ℃
Storage Temperature	-30~ +80 ℃
Backlight Current(Typ)	Less than 1mA

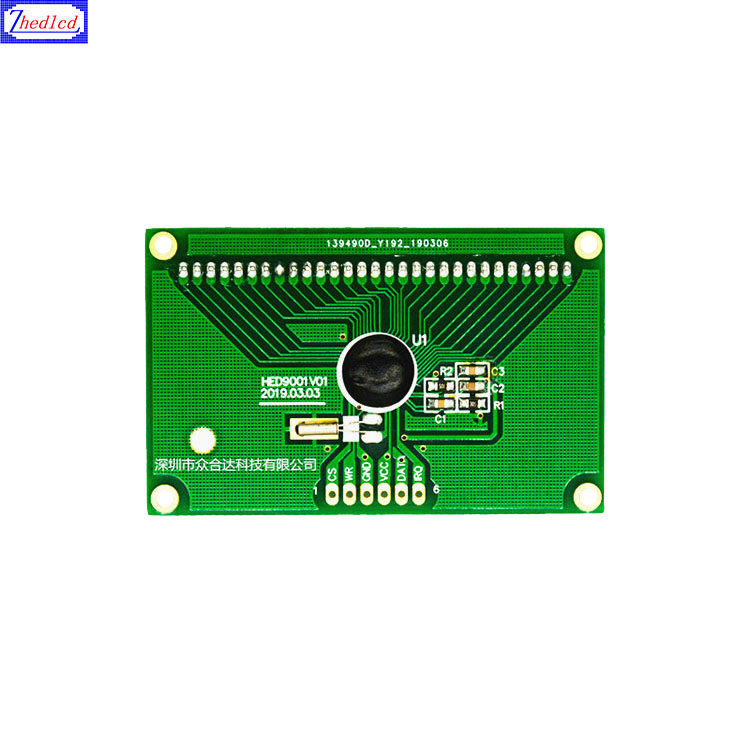

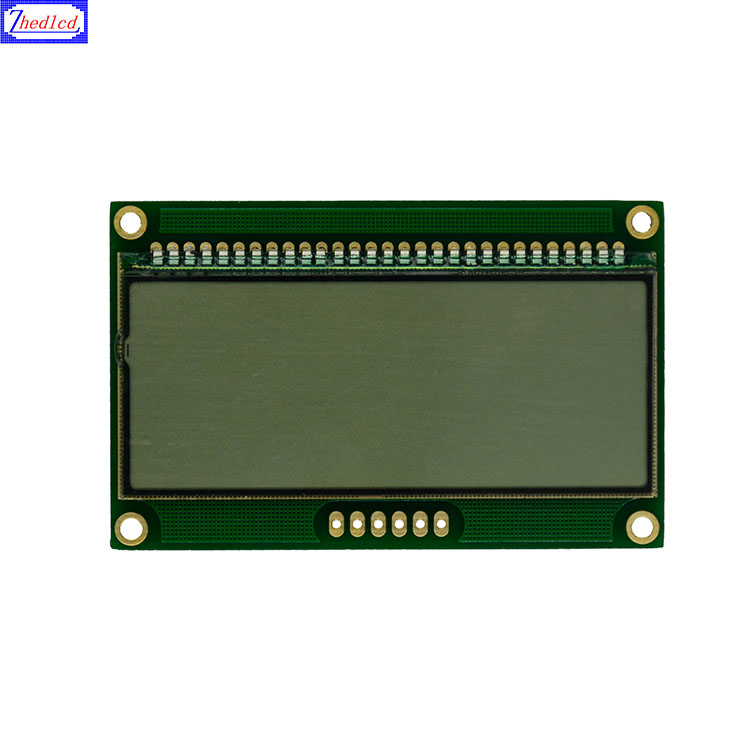

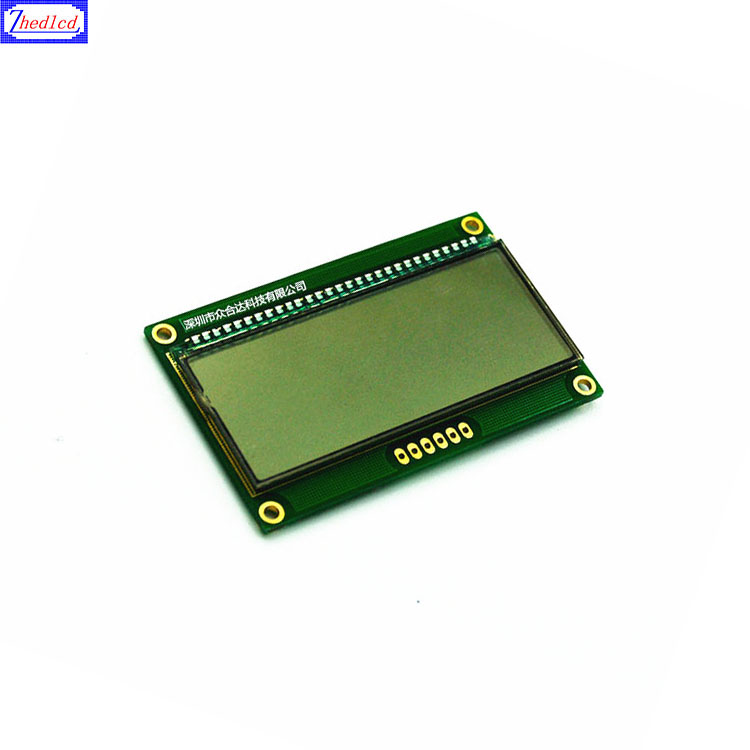

Products Details Images

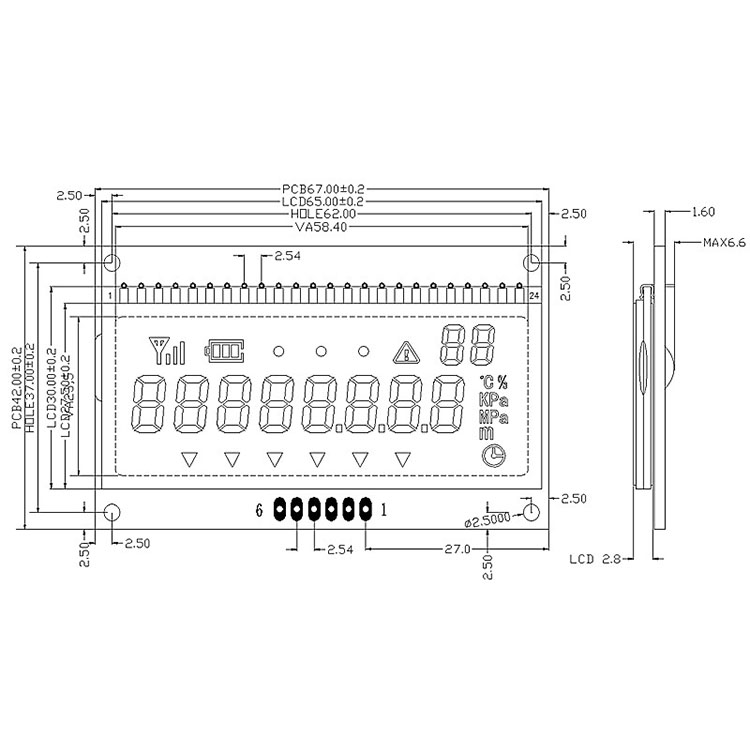

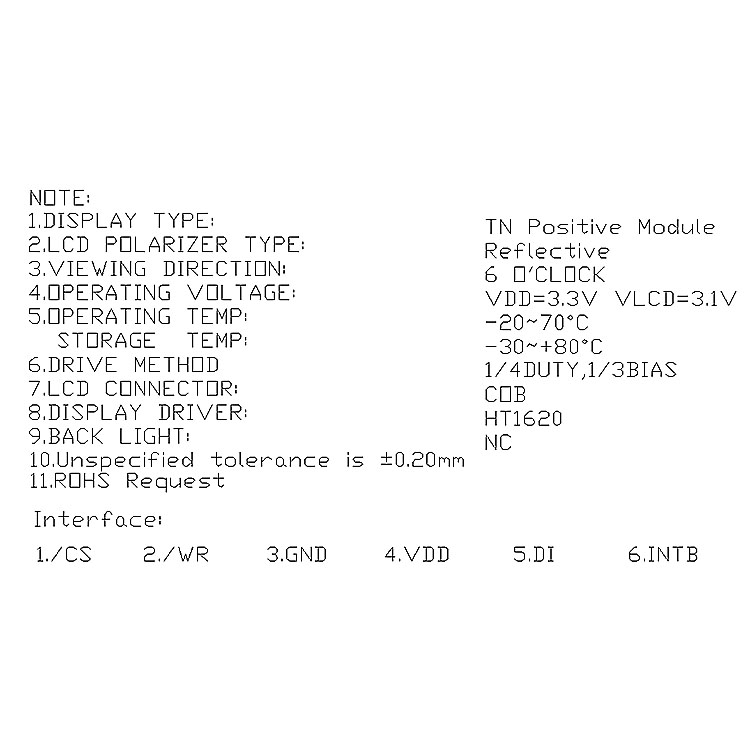

Outline Drawing& Interface Instruction
