4.3" TFT Module

category：TFT Display Module

Clicks：917

release time：2022-09-01

Notice:

 We produce and sell a variety of small and medium-sized TFT products. Welcome to consult!

Products Description

item	value
Module NO	HED043SD1001-T013/HED043LB0701-T013
COB Type	480X272 Dots
Module Size	105.4(L)X67.1(W)X2.9(H) MM
Viewing Area	97.92X56.7 MM
Active Area	65.04X53.86 MM
Operate Voltage	3.3 V
Viewing Direction	Full perspective
Interface	Parallel RGB 24-Bit
Controller IC	ST2782 or Equal
Backlight Current(Typ)	7chips white LEDS, Serial 105mA/10chips white LEDS, Serial150mA
Operating Temperature	-20~ +70 ℃
Storage Temperature	-30~ +80 ℃

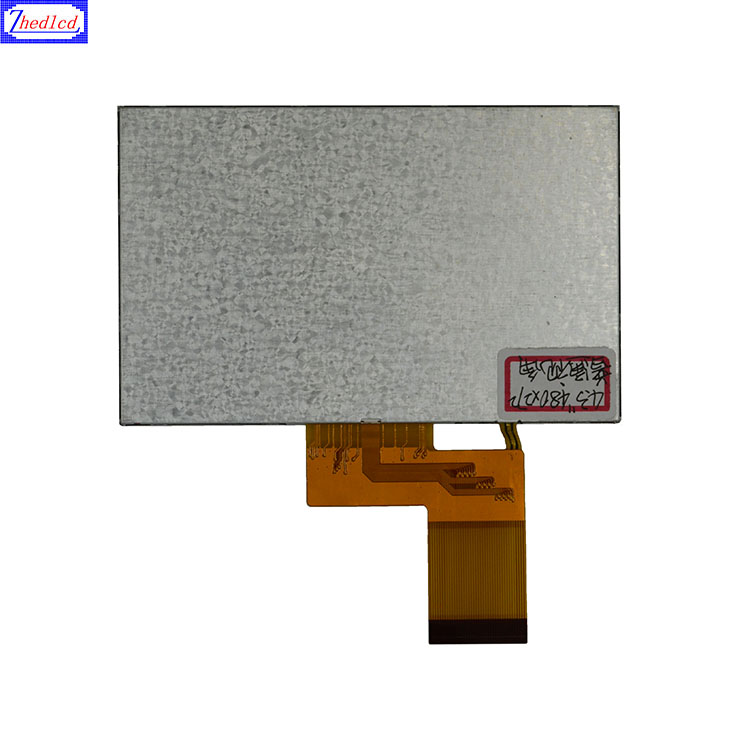

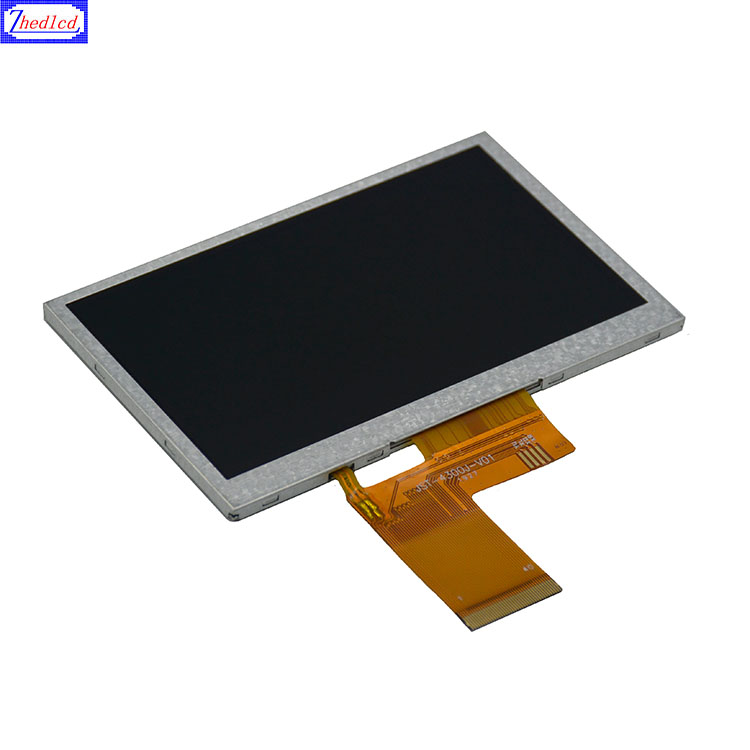

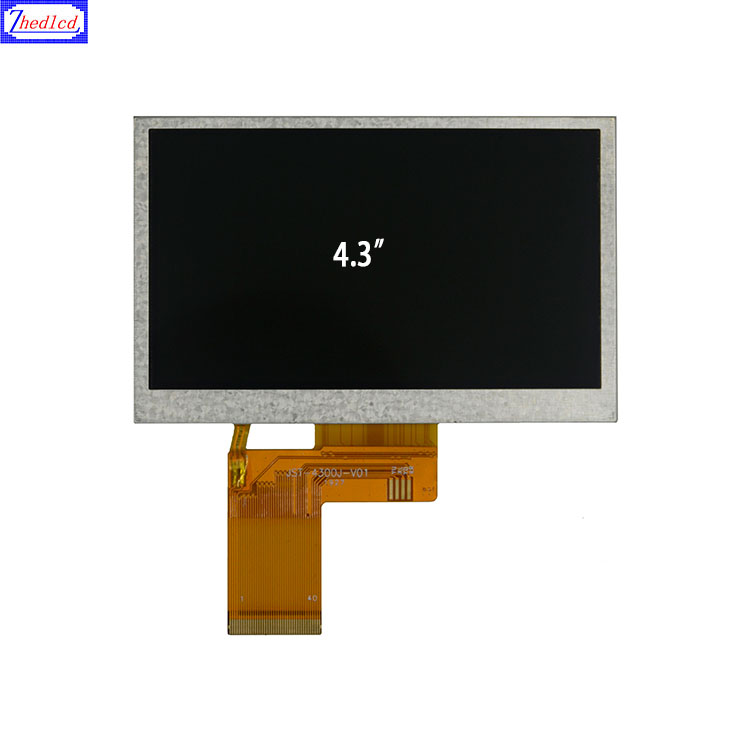

Products Details Images

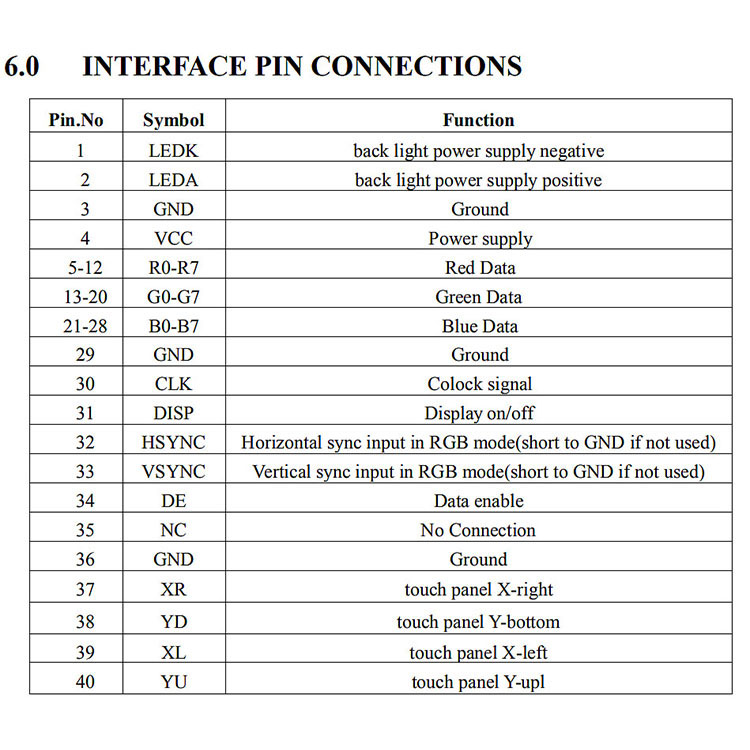

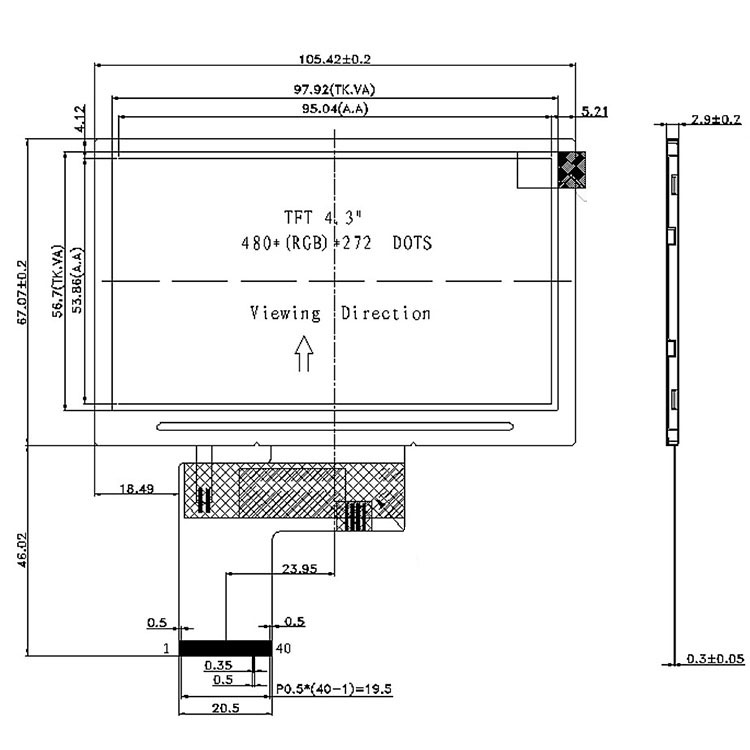

Outline Drawing& Interface Instruction
